Stearman PT-13A Kaydet

The Stearman Kaydet (also known as the Stearman (Boeing) Model 75) was a Biplane Primary Trainer with seating for an instructor and trainee, in inline open cockpits, and had fixed landing gear.  Several variants ofthe plane were built, primarily differentiated by they type of engine fitted.  Per Reference [8] the base PT-13, or whih 26 were built,  was fitted with a 210 HP Lycoming R-680-B4B radial engine.  The PT-13A variant, of which 92 were built, was fitted with a 220 HP ycoming R-680-7 radial engine. The PT-17 was a sinilar design fitted with Continental R-670 radial engines, and the PT-18 was a variant fitted with Jacobs R-755 radial engines.  The US Navy also operated these type aircraft under the desginations NS and N2S.  Export variants, designated the Stearman 76 were also sold to Venezuela, Brazil, Argentina, the Philllipines, and Cuba.  The type was also provided to Canada as part of Lend/Lease during WWII.  Per reference [8] this type was introduced into service in 1934, and a total of 10,626 were built.

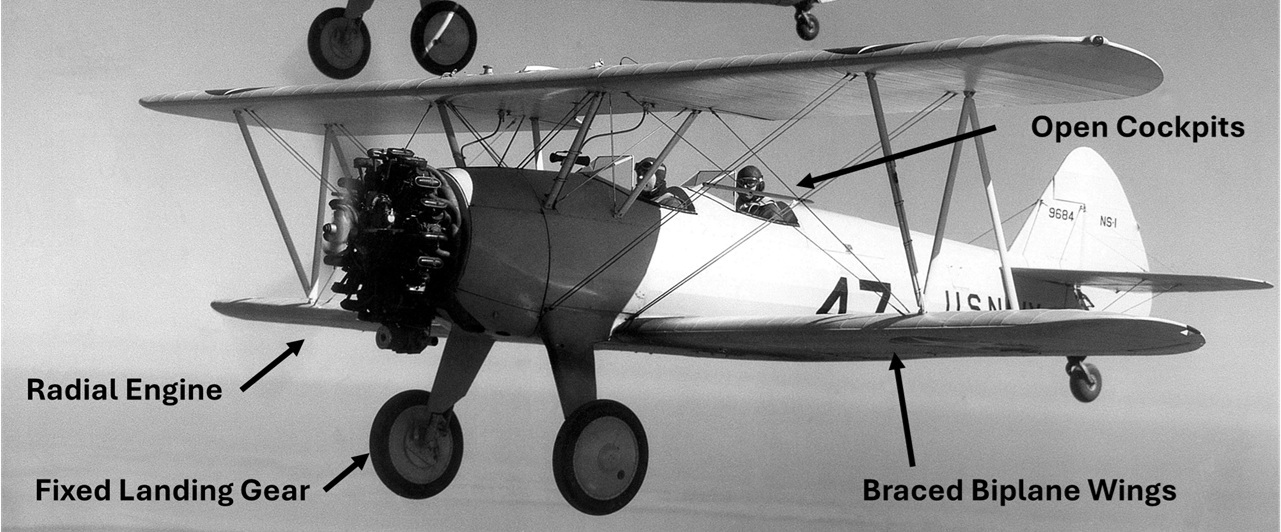

As shown in the images below distinguishing features of this aircraft including;
PT-13A

[Image Sources: US Government/Public Domain via Ref [8] - as annotated by this site]

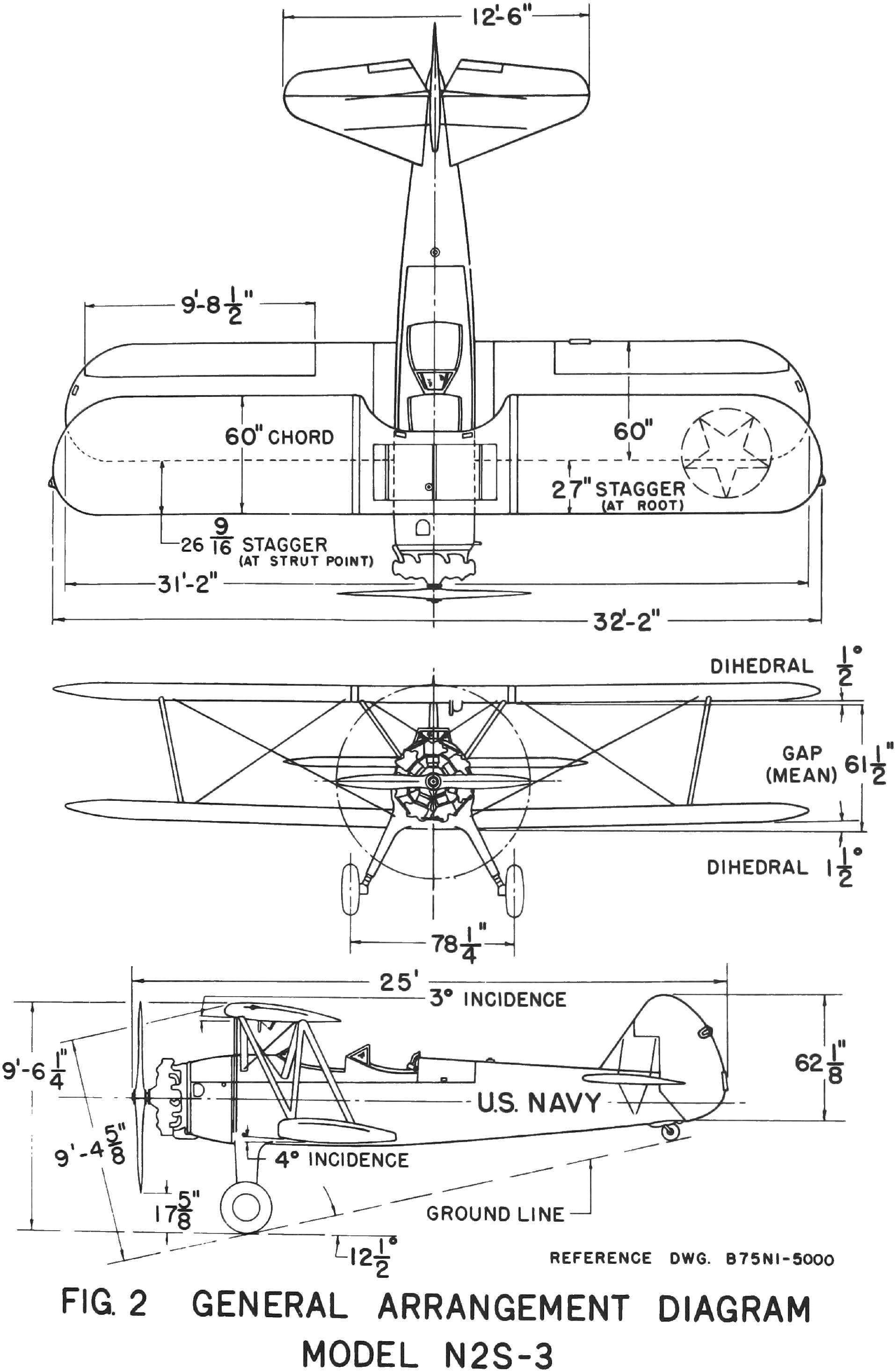

N2S-PT13
        [Source: Ref [8] - US Government/Public Domain]

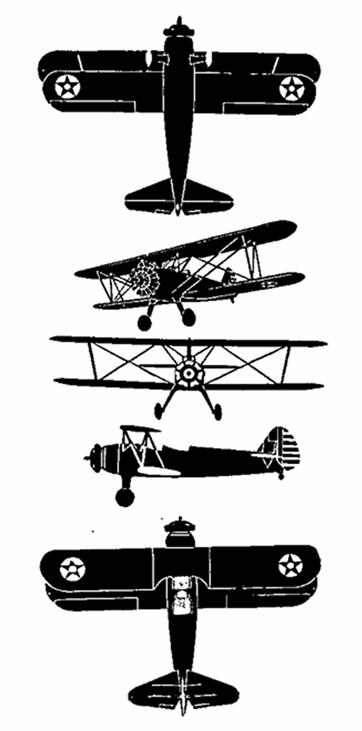

PT-17_PT-18_3-view_A
[Source: Ref [14] - Scanned from a US Government Document - Believed to be in the Public Domain]
                                                PT-17/PT-18 Variant

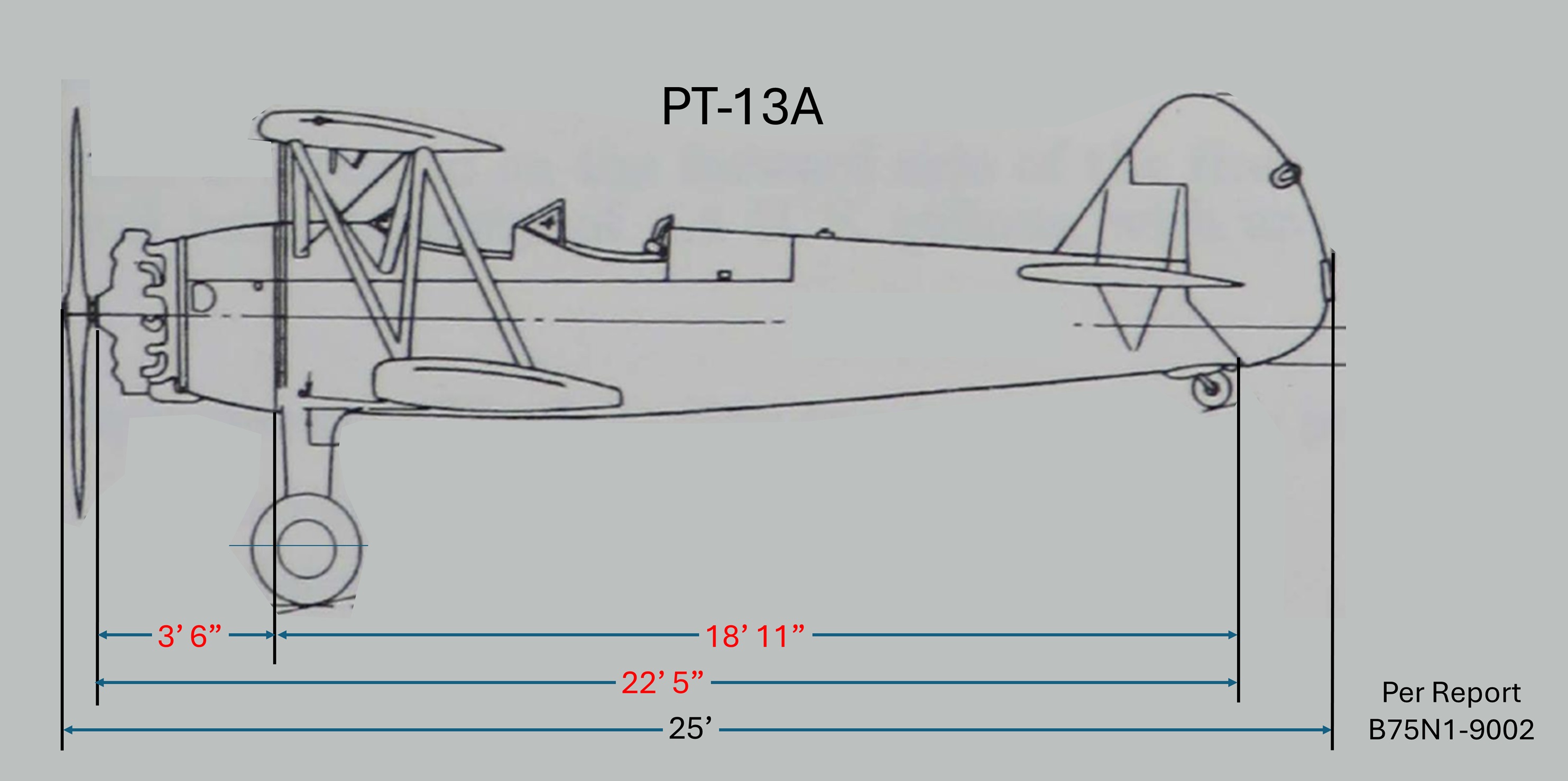

In order to try and better develop weight estimating relationships an effort has been made to estimate the length of the fuselage aft of the firewall, and the length of the engine section forward of the firewall based off scaled drawings.  Together these two distances add to a term called the "structural length" and do not consider any portion of the engine or propeller shaft the extend foward of the fuselage/cowling, or any empennage that extends aft of the fuselage structure.  The drawing below shows the current best estimate of these dimensions obtained from available drawings of the airplane and will be updated with any real world data that becomes available.  For any aircraft with an inclined firewall, an attempt has been made to locate an approximate center of this location.

PT13A Dims
                                                                Source References [2] [3] [8] & [16]

In the above images, dimensions in Black come from the source material while dimesions in Red have been approximated from the data available.

The table below summarizes the current data collected on this type aircraft, identifying sources for the data

    PT-13A Secondary Sources Notes
Primary Source   2

No of Crew   2

Engine:


   Qty   1 5
   Model   R-680-7 5
   Displacement  (cu in) 680 5
   Power


     Military (HP)


     War Emergency (HP)


    Normal (HP)
5
    Take Off (HP) 220 5
   Eng Dims


     Length (ft) 3.09 5
     Width/Dia (ft) 3.63 5
     Height (ft)


   Base Engine Wt (lb) 500 5
Propeller


   # Blades   2

   Dia (ft) 8.5

   Manufacturer


   Type


Wing


   Span (ft)


   Root Thickness (%)


  (in)


   Total Area  (sq ft) 298

     Wing (less Ailerons & Flaps) (sq ft)


     Ailerons (sq ft)


     Flaps (sq ft)


Tail Area (sq ft)
3
   V Tail Area (sq ft)
3
     Fin (sq ft)

     Rudder (sq ft)

   H Tail Area (sq ft)
3
     Stabilizer (sq ft)

     Elevator (sq ft)

Total Control Surf Area (sq ft)


Length


   Overall (ft)


   Fuselage (ft)


   Body  (ft) 24.75

     Body Depth (ft)


    Body Width (ft)


Fuel Tank Volume (gal)


   Wing Tanks (gal)


    FuselageTanks (gal)


Oil Tank Volume (gal)


Water Injection Fluid Tank Volume (gal)


Wetted Area (sqf) (sq ft)


Pwr Ldng (lb/HP) 11.97

Wing Ldng (lb/sq ft) 8.84

Struct. Des. GW  (lb) 2638

Ultimate Load Factor (G's)


Design Speed (mph) 125

Not to Exceed Speed (mph)





Total Struct Weight   1051

   Total Wing   444

     Wing

     Ailerons

     Flaps

     Fuselage Carry-Through

   Tail   72

     H Tail   52

       Stabilizer

       Elevator

     V Tail   20

       Fin

       Rudder

   Body + Eng Section + LG


   Body + LG   535

   Body   274

     Fuselage

     Engine Section

   Landing Gear   261

     Mn Landing Gr   233

     Tail/Nose Aux LG   28

   Tail Hook


   Booms


   Nacelles

Total Propulsion Weight   714

   Engine w/ Accessories   524

   Engine(s) as Installed   500

     Accessories   24

    Turbocharger(s)


   Controls   11

   Propeller(s)   84

     2-Blade   84

     3-Blade

     4-Blade

   Starting System   28

   Water Injection System


     Tanks

     Piping Etc

   Cooling System


   Lube System   12

     Tanks

     Piping Etc

   Fuel System   55

     Tanks

     Piping Etc

Total Sys. & Eqpmt.   181

   Instruments   29

   Surface Controls    64

   Hydraulics


   Electrical Equip   11

Electronics (Purple means incl in Furn/Gray in Useful Ld)


   Arm Prov/Equipment & Armor


    Furnishings   77

   Anti-Ice (If not in Furn)


   Other /Misc


     Hoisting Gear


     Floatation Gear


     Armor Plate



Empty Wt   1946

Basic Mission Useful Load   688

   Crew   400

   Equipment


   Oil   33

   Fuel   255

   Fuel & Oil Trapped in Systems


   Water Solution for Engine Injection


   Bombs/Torp Etc


   Radio (if Not Included in Empty Wt)


   Nav Equipment


   Oxygen System


   Armament


     Guns & Ammo

       Guns

       Ammo

     Pyrotechnics

     Camera

     Other

   Other Useful Load


Basic Mission GW   2634
