Vultee A-35

The A-35 was a two-seat land-based dive-bomber developed by Vultee Aircraft Corporation.  Per Freference [8] the A-35 was a development of the earlier A-31 aircraft, differing from it primarily in wing incidence angle.  The intial A-31 was developed by Vultee in response to a French Armee de l'Air requirement but did not take its first flight until 30 March 1941.  Although the design was meant primarily for sale on the foreign markt, the USAAF eventually took delivery of a number of both the A-31 and A-35 variant, though none were to see combat with the USAAF.  The design did however serve with the Royal Air Force (RAF), Royal Navy (RN), Royal Austrailian Air Force (RAAF), tRoyal Indian Air Force (RIAF), Free French Air Force, and Brazilian Air Force during WWII.  A total of 1,931 of all types of this aircraft were built.

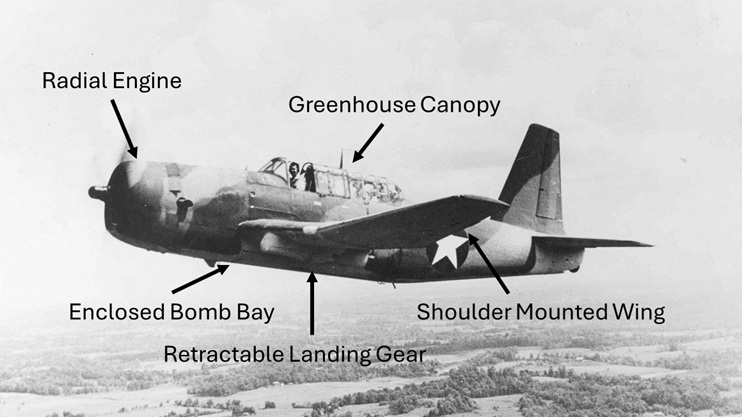

As shown in the images below distinguishing features of this aircraft including;
 The W-shaped wing planform was incorporated into the design to shift the location of the center of lift of the wings which was initially miscalculted.

AT-19A
     [Image Sources: US Government/Public Domain via Ref [8] - as annotated by this site]

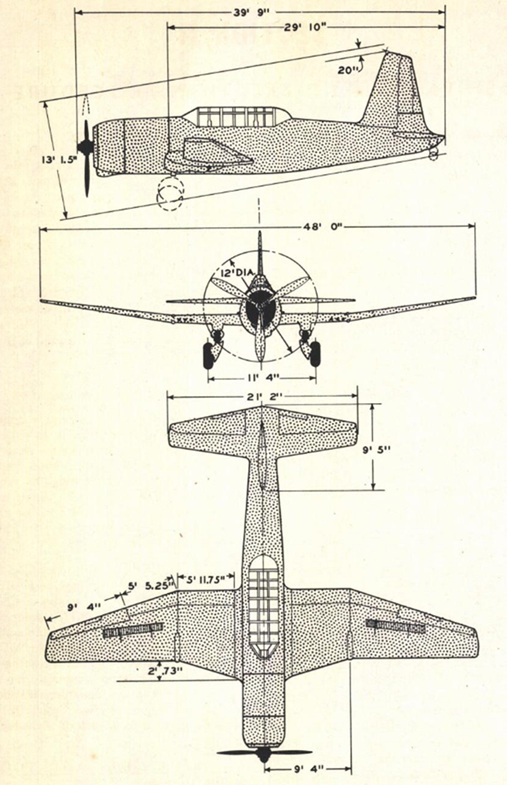

AT-19
[Source: Ref [16] - US Government/Public Domain]

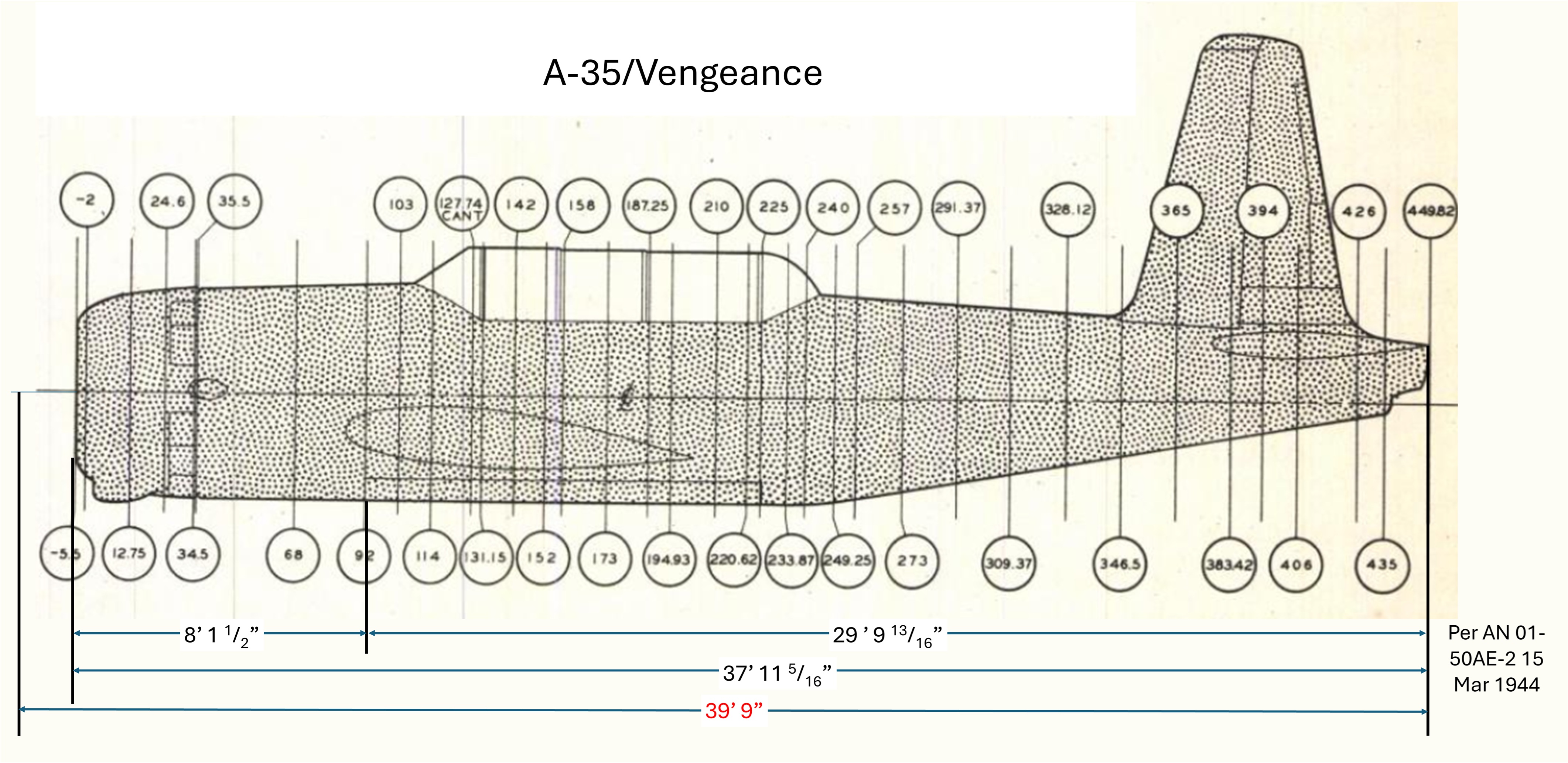

In order to try and better develop weight estimating relationships an effort has been made to estimate the length of the fuselage aft of the firewall, and the length of the engine section forward of the firewall based off scaled drawings.  Together these two distances add to a term called the "structural length" and do not consider any portion of the engine or propeller shaft the extend foward of the fuselage/cowling, or any empennage that extends aft of the fuselage structure.  The drawing below shows the current best estimate of these dimensions obtained from available drawings of the airplane and will be updated with any real world data that becomes available.  For any aircraft with an inclined firewall, an attempt has been made to locate an approximate center of this location.

A35 Dims
                                                                Source References [8] [16] & [17]

In the above images, dimensions in Black come from the source material while dimesions in Red have been approximated from the data available.

The table below summarizes the current data collected on this type aircraft, identifying sources for the data

    A-35B Secondary Sources Notes
Primary Source   17

No of Crew   2

Engine:

   Qty   1

   Model   R-2600-13

   Displacement  (cu in) 2604

   Power

     Military (HP)

     War Emergency (HP)

    Normal (HP) 1500

    Take Off (HP) 1700

   Eng Dims

     Length (ft) 5.26

     Width/Dia (ft) 4.52

     Height (ft)


   Base Engine Wt (lb) 1978.5

Propeller

   # Blades   2

   Dia (ft) 12.0

   Manufacturer   Hamilton Std

   Type    Const Spd

Wing

   Span (ft)  48.0

   Root Thickness (%)   16.0%

  (in) 20.16

   Total Area  (sq ft) 335.0

     Wing (less Ailerons & Flaps) (sq ft)

     Ailerons (sq ft)

     Flaps (sq ft)

Tail Area (sq ft)


   V Tail Area (sq ft)


     Fin (sq ft)

     Rudder (sq ft)

   H Tail Area (sq ft)

     Stabilizer (sq ft)

     Elevator (sq ft)

Total Control Surf Area (sq ft)

Length

   Overall (ft)  39.75

   Fuselage (ft)


   Body  (ft)

     Body Depth (ft)  5.50

    Body Width (ft)  4.50

Fuel Tank Volume (gal)  286

   Wing Tanks (gal)  136

    FuselageTanks (gal)  150

Oil Tank Volume (gal)  12.5

Water Injection Fluid Tank Volume (gal)

Wetted Area (sqf) (sq ft)

Pwr Ldng (lb/HP) 9.65

Wing Ldng (lb/sq ft) 48.96

Struct. Des. GW  (lb)


Ultimate Load Factor (G's) 12

Design Speed (mph) 265

Not to Exceed Speed (mph)  450.5



Total Struct Weight


   Total Wing   2172.6

     Wing   1919.0

     Ailerons    67.3

     Flaps     92.8

     Dive Brakes     93.5

     Fuselage Carry-Through

   Tail   381.4

     H Tail   249.2

       Stabilizer   138.7

       Elevator    110.5

     V Tail   132.2

       Fin   55.0

       Rudder    77.2

   Body + Eng Section + LG

   Body + LG   1288.0

   Body   1552.3

     Fuselage   1169.1

     Engine Section    383.2

   Landing Gear   1044.7

     Mn Landing Gr   955.4

     Tail/Nose Aux LG   89.3

   Tail Hook

   Booms

   Nacelles

Total Propulsion Weight   3470.5

   Engine w/ Accessories   2180.0

   Engine(s) as Installed   2027.2

     Accessories   152.8

    Turbocharger(s)

   Controls   24.1

   Propeller(s)   459.8

     2-Blade


     3-Blade   459.8

     4-Blade

   Starting System   58.7

   Water Injection System

     Tanks

     Piping Etc

   Cooling System

   Lube System   182.2

     Tanks


     Piping Etc


   Fuel System   565.4

     Tanks


     Piping Etc


Total Sys. & Eqpmt.


   Instruments


   Surface Controls


   Hydraulics


   Electrical Equip


Electronics (Purple means incl in Furn/Gray in Useful Ld)


   Arm Prov/Equipment & Armor


    Furnishings


   Anti-Ice (If not in Furn)

   Other /Misc

     Hoisting Gear

     Floatation Gear

     Armor Plate



Empty Wt


Basic Mission Useful Load


   Crew


   Equipment


   Oil


   Fuel


   Fuel & Oil Trapped in Systems


   Water Solution for Engine Injection


   Bombs/Torp Etc


   Radio (if Not Included in Empty Wt)


   Nav Equipment


   Oxygen System


   Armament


     Guns & Ammo

       Guns

       Ammo

     Pyrotechnics


     Camera


     Other


   Other Useful Load


Basic Mission GW
